XC FS Race bike Built for the XTerra World Championships in Maui, HI - September 2008
Built for elite athlete Pete Hawkins for the 2008 XTerra World Championships in Maui, HI. The frame uses flat plate carbon fibre / aluminium sandwich chainstays to provide vertical rear wheel compliance with high lateral stiffness, and a pultruded integrated seatpost bonded in place.
The bike helped Pete to take the gold medal and become World Champion.
Frame
6082-T6 alloy mainframe with pultruded carbon seatpost

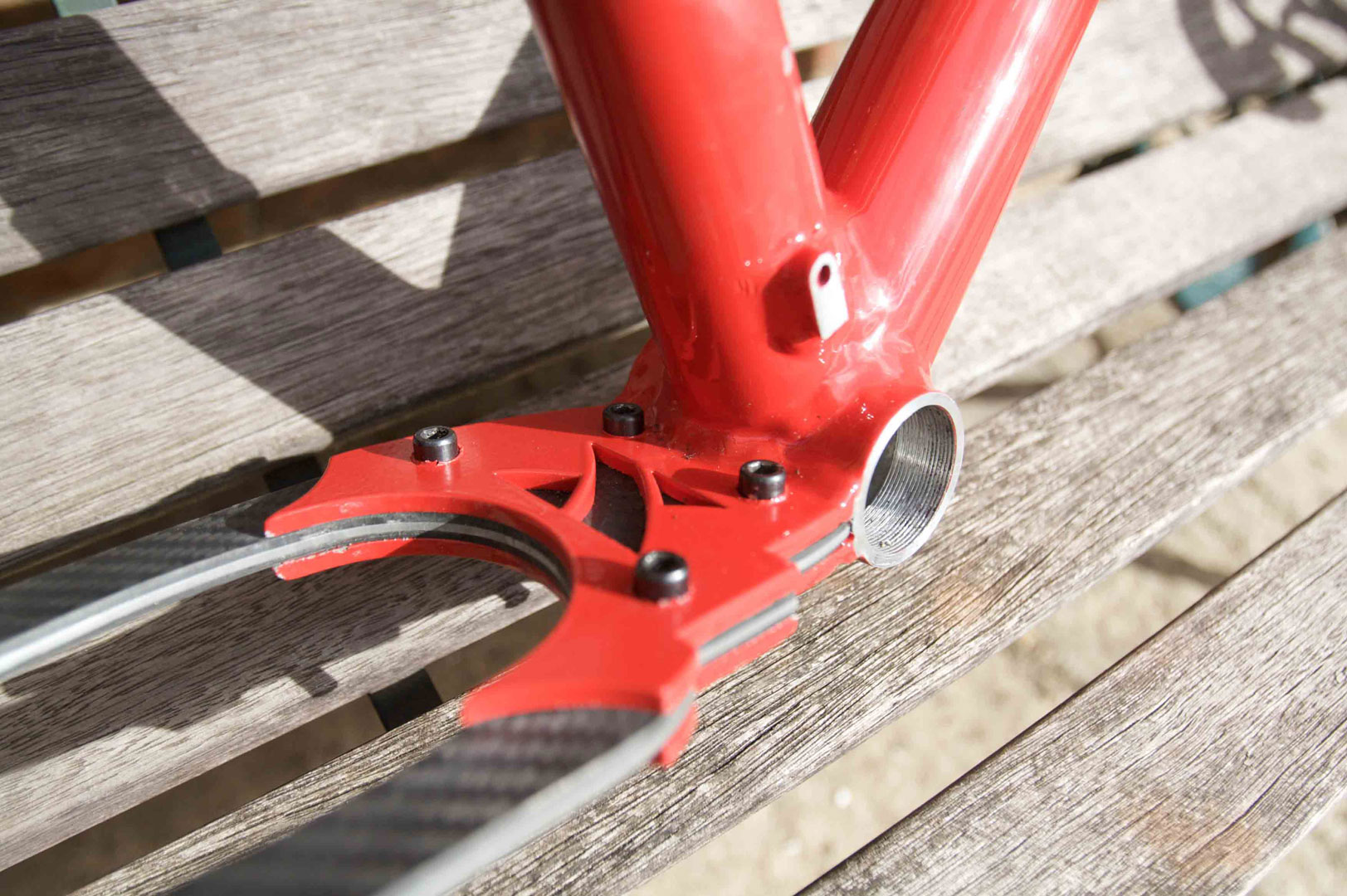

Carbon / aluminium / carbon sandwich chainstays
Roll-wrapped UD carbon seatstays
135mm rear axle spacing

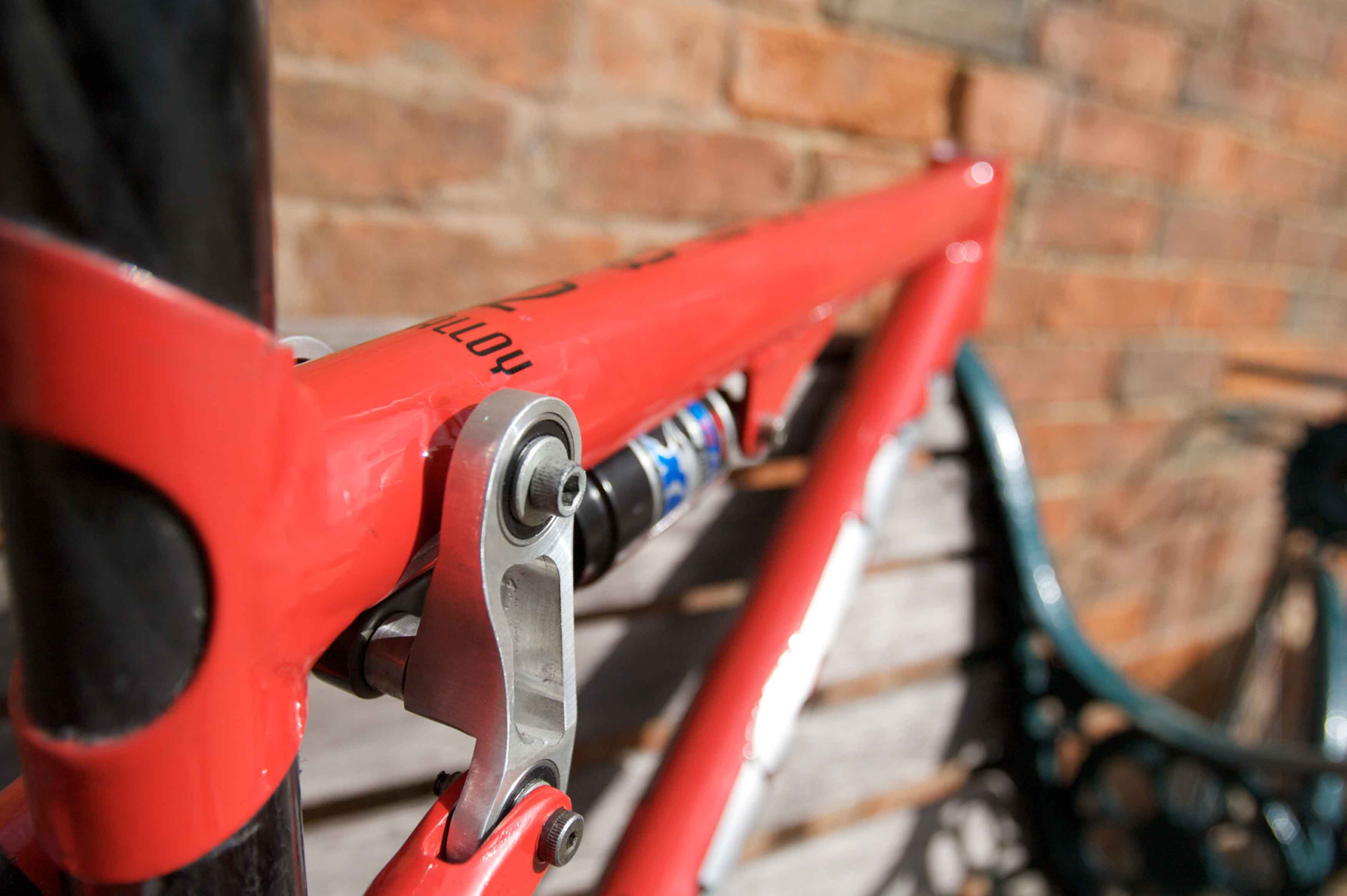

Manually machined rocker links
build
Shimano XTR 3x9 groupset & brakes
Maverick American DUC32 fork
Hope Technology Pro2 hubs & Mavic rims
Custom built seat clamp
