Composite 29er FS Race Frame - Work-in-progress

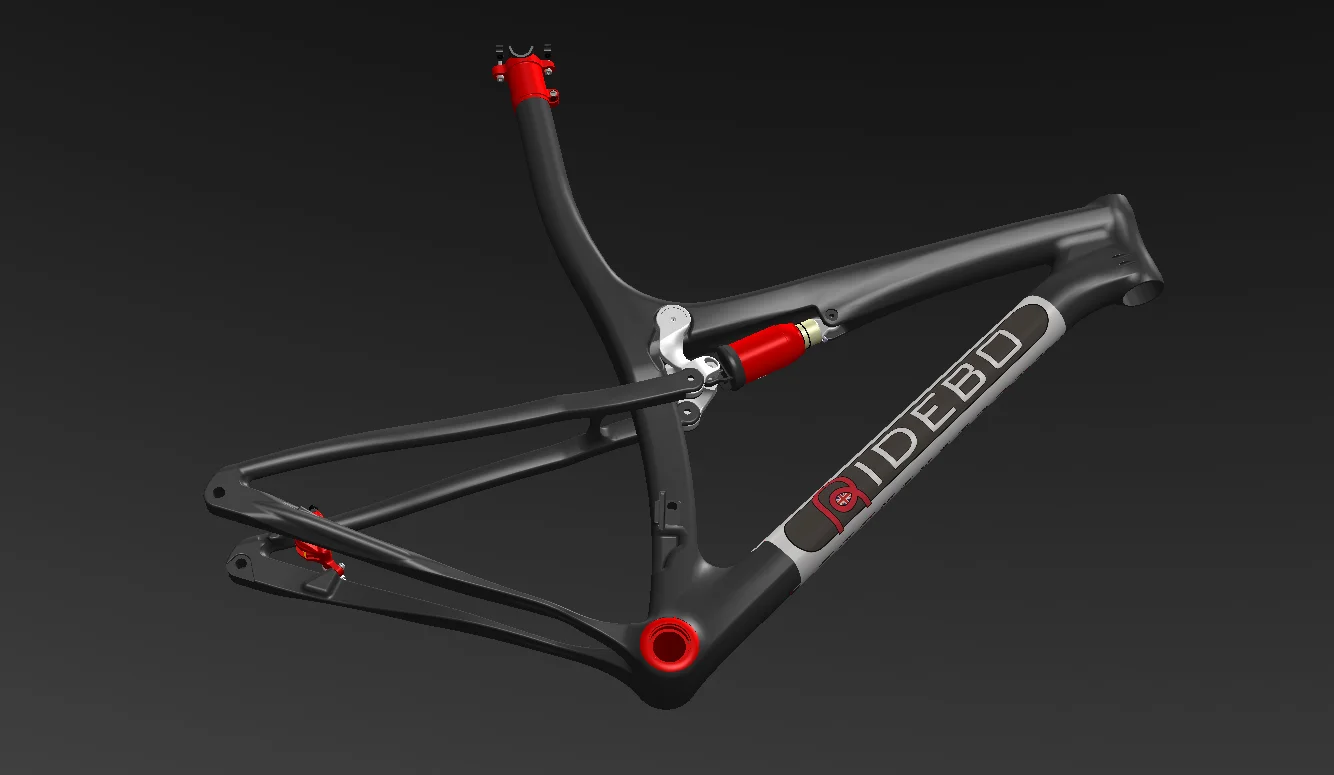

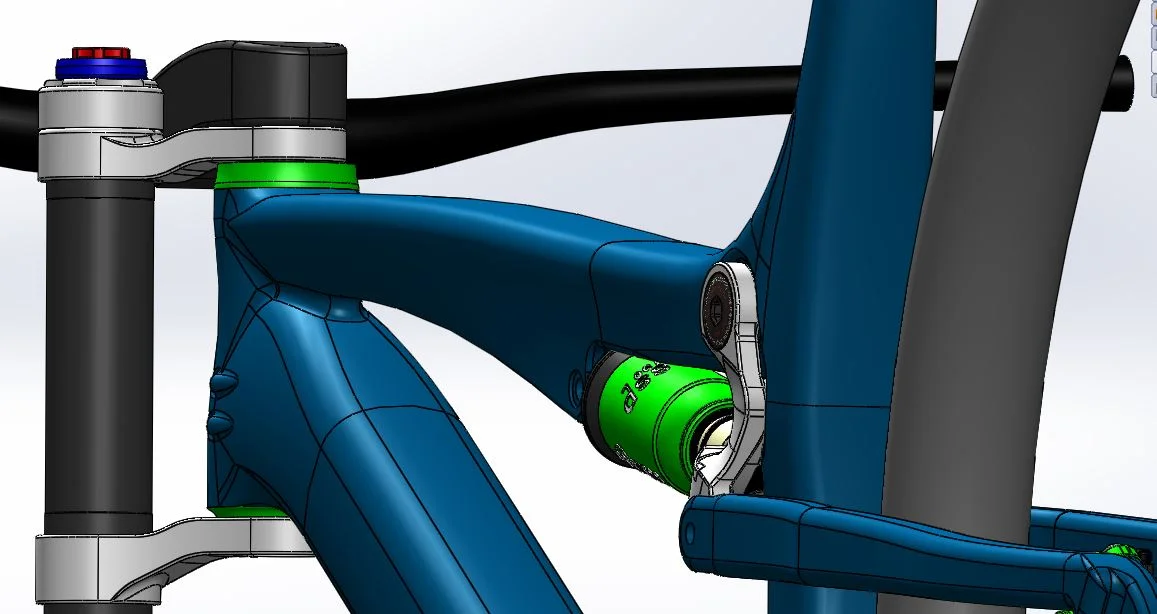

Still a work-in-progress, this frame is a composite moulded structure utilising live chainstays for vertical compliance but high lateral stiffness, an integrated seatpost and carbon fibre suspension link. Moulds have been machined and are being prepared ready for initial moulding trials.
Frame
UD high modulus carbon fibre prepreg fabric layered on to a foam core / silicon bladder
29" wheels, 2.25" max tyre size
142x12 Boost rear axle
Direct mount front derailleur
Bonded cups used for headtube and BB shell
production process

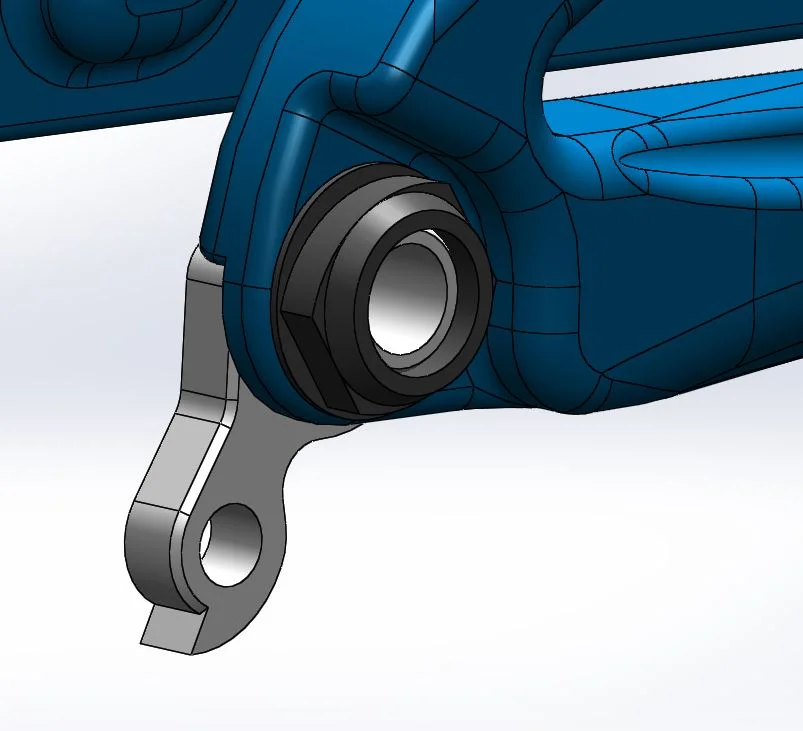

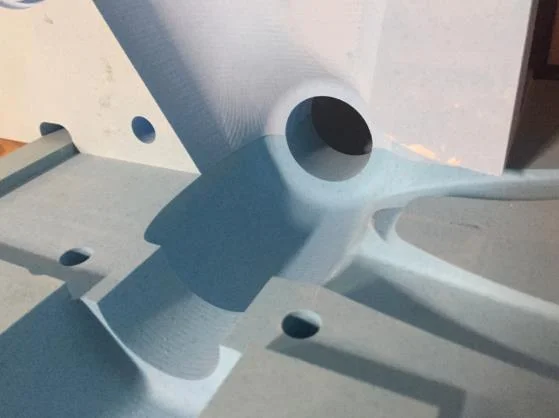

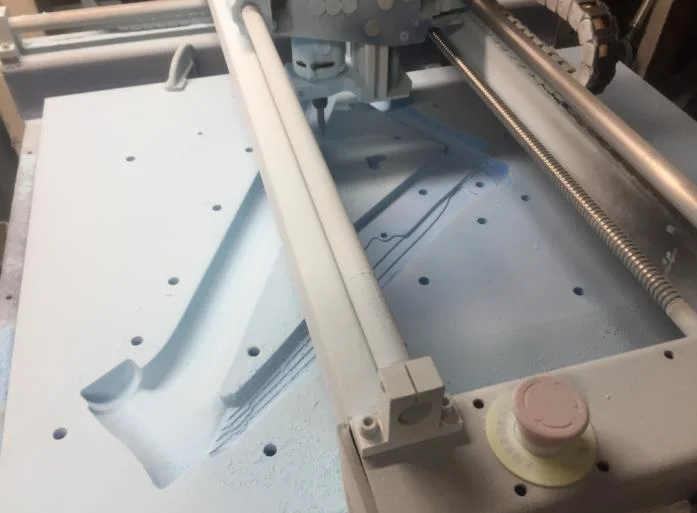

This frame is to be made using machined epoxy tooling board moulds and a custom formed silicon bladder over a cast foam core (which is later removed). Chainstays are moulded with the mainframe. The seat stays are moulded separately and joined to the chainstays by overmoulding the form of the carbon dropouts (compression moulding).
This frame is designed for a 2x10 Shimano drivetrain.
